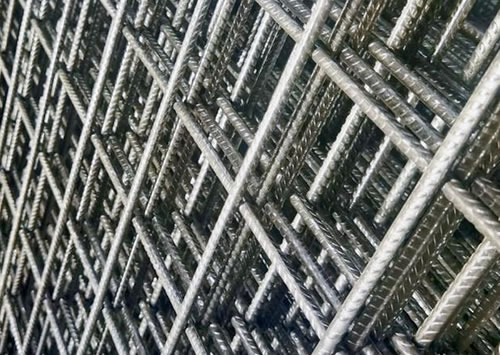

Steel Reinforcement Mesh BS 4483 is welded steel wire mesh manufactured in accordance with British Standard BS 4483.

Structure: It is made of quality steel wires precisely and firmly welded at each intersection to form a high-strength and dimensionally stable mesh fabric.

BS 4483 Reinforcement Mesh offers high tensile strength, uniform spacing and reliable concrete bonding, ideal for slab, wall and foundation reinforcement in structural applications.

Material: Ribbed bar, round bar

Choose Mesh Codes of BS4483:
Mesh Code Prefix “A” type fabrics are commonly made with plain round wires
Mesh Code Prefix “B”, “C”, “D” types are made with deformed bars / rebars for higher-strength applications.

Steel Fabric Mesh BS4483 D6

Steel Fabric Mesh Square Hole for Reinforcement of Concrete
Delivery to Singapore
Specification:
D6 ( 6mm x 100mm)
Comply with SS561 and BS4483

Reinforcing Steel Mesh - BS 4483 A98, B196, C283, D49
Reinforcing Mesh manufactured according to BS 4483, in dimensions, wire sizes, spacing and material requirements.
Delivery to UK

Reinforcement mesh; A98
Wire diameter: 5 mm
Spacing: 200 mm × 200 mm
Sheet size: 4.8 m × 2.4 m
Major use: Reinforcing slabs and light concrete panels

Reinforcement mesh; B196
Wire diameter: 6 mm
Spacing: 200 mm × 200 mm
Sheet size: 4.8 m × 2.4 m
Major use: Light structural reinforcement in slabs and retaining walls

Reinforcement mesh; C283
Wire diameter: 8 mm (main) / 6 mm (cross)
Spacing: 200 mm × 200 mm
Sheet size: 4.8 m × 2.4 m
Major use: Reinforcement for ground slabs and structural foundations

Reinforcement mesh; C385
Wire diameter: 10 mm (main) / 8 mm (cross)
Spacing: 200 mm × 200 mm
Sheet size: 4.8 m × 2.4 m
Major use: Structural concrete reinforcing

Reinforcement mesh; C503
Wire diameter: 12 mm (main) / 8 mm (cross)
Spacing: 200 mm × 200 mm
Sheet size: 4.8 m × 2.4 m
Major use: Reinforcing heavy-duty slabs, walls and large concrete bases

Reinforcement mesh; C636
Wire diameter: 12 mm (main) / 10 mm (cross)
Spacing: 200 mm × 200 mm
Sheet size: 4.8 m × 2.4 m
Major use: High-load concrete structures and industrial foundations

Reinforcement mesh; C785
Wire diameter: 16 mm (main) / 12 mm (cross)
Spacing: 200 mm × 200 mm
Sheet size: 4.8 m × 2.4 m
Major use: Heavy load-bearing slabs and structural components

Reinforcement mesh; D49
Wire diameter: 6 mm (main) / 5 mm (cross)
Spacing: 100 mm × 400 mm
Sheet size: 4.8 m × 2.4 m
Major use: Reinforcing ground slabs and trench fills

Reinforcement mesh; D98
Wire diameter: 8 mm (main) / 6 mm (cross)
Spacing: 100 mm × 200 mm
Sheet size: 4.8 m × 2.4 m
Major use: Directional reinforcement in ground beams and slab-on-grade foundations

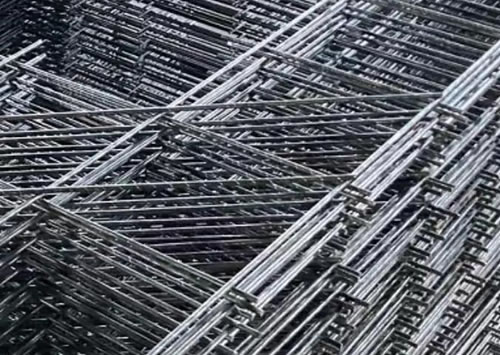

Pre Cut Welded Steel Mesh made to BS 4483 standard- Light Duty

BRC Steel Fabric Reinforcement of plain round wire
Delivery to Oman
Specification:

BRC A6 (BS REFRENCE A142)
Wire diameter: 6mm
Spacing: 200 mm × 200 mm
Material: Plain round wire

BRC A7 (BS REFRENCE A193)
Wire diameter: 7mm
Spacing: 200 mm × 200 mm
Material: Plain round wire

BRC A8 (BS REFRENCE A252)
Wire diameter: 7mm
Spacing: 200 mm × 200 mm
Material: Plain round wire

Steel Wire Mesh for Constuction Light Weight Insulating Concrete Reinforcing
Specification:
Welded steel fabric for reinforcement of concrete to BS 4483
Material: Galvanized plain mild steel wire
Form: Flat sheets
Wire diameter: 8.00 mm diameter
Pitch: 200 mm pitch in both directions
Opening: Square mesh.

Using of Welded Wire Reinforcement for Light Insulation Concrete:
Place steel welded wire reinforcement with longest dimension perpendicular to steel deck ribs.
Cut reinforcement to fit around roof openings and projections.
Terminate reinforcement at control joints.
Lap sides and ends of reinforcement at least 150 mm.
